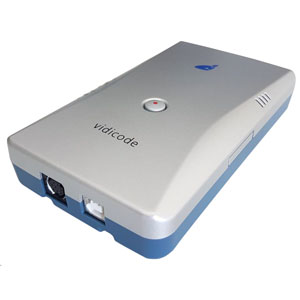

| (Model # 010-01200) Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice. The Call Recorder VoIP brings Voice over IP recording technology within reach of even the smallest application. Record and store all your telephone calls on your PC.
CR-VOIP Features:
- The device is pre-configured for its function. It has Ethernet ports for LAN, PC and telephone system
- Record calls from most IP desktop phones and soft-clients
- Records from SIP, H323, Cisco, Unify, Alcatel, Aastra, Avaya and other VoIP protocols
- Automatic recording of all calls
- Advanced search on: Date, Time, Duration, Telephone numbers, Notes
- Import and export of complete archives for backup purposes
- Playback and e-mailing of recordings
- User specified display of call listing
- Notes field and Names field
- Comprehensive database
- Password control
- Power: USB
- Each Ethernet port supports 10/100 Mbps
- Compatible with Windows 7, 8 and 10. Will not run on a Mac or OS X
- PC based recording of 1 to 4 VoIP channels extra license per channel required Model # 090-01203 (sold separately)
Connections:
- PC: RJ45 , Ethernet
- VoIP: RJ45, Ethernet, POE bridge from LAN
- LAN: RJ45, Ethernet, POE bridge from VoIP
- USB
Specifications:
- Recording channels : 1, 2, 3 or 4 (by licensing)
- PC: RJ45, Ethernet 10BASE-T, 100BASE-T, full duplex
- VoIP: RJ45, Ethernet 10BASE-T, 100BASE-T, full duplex, POE bridge from LAN
- LAN: RJ45, Ethernet 10BASE-T, 100BASE-T, full duplex, POE bridge to VoIP
- USB Version : V 2.0 High Speed (480Mbps)
- USB Profile : Generic HID (VID: 0DE1(16) / PID: 3101(16)
- USB Current : 5V @200mA (Max. 1W)
- USB Connector : Full size ‘B’- type
- Size: 70 x 66 x 24 mm
- Temperature Range : 0 – 40 °C
- Humidity Range : 10 – 90 %, non condensing
- EMC: EN 55022:2010/AC :2011 Class B
- EN 55024:2010
- Safety: EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- RoHS: RoHS Directive 2011/65/EU
- EN 50581:2012 (RoHS2)
Standard SIP protocol Standard SIP phones / SIP trunks:
- Aastra/Mitel: Aastra 400, Aastra 5000, Aastra Intelligate, Aastra (Ericson) Mx-One
Alcatel (UA-UDP protocol):
- Alcatel-Lucent OmniPCX Enterprise R9
- Avaya IP Office
- Cisco Call Manager (SCCP / Skinny protocol / SIP)
- Cisco Call Manager 5, 7, 8, 10
Siemens / Unify HFA:
- Unify OpenScape Mx v.3
- Unify HiPath 4000 series
- Unify HiPath 3000 series / Openscape Business
- Unify HiPath Open Office
- Unify ISDX 3000
- Unify OSV (uses SIP)
Megaco / H.248 (used by Toshiba)
NEC SV8100
List of supported VoIP audio codecs:
- G.711, 8 KHz, A-law and mu-law
- G.722
- G.729 2)
- GSM 6.10
Box Contents:
- Call Recorder VoIP unit
- USB cable 2.0
- LAN cable
- Application CD
- Software License 1 CH
- Quick Guide
Note:
- In general, encryption needs to be disabled
- G.729 decoding requires a paid channel license
| |
