Xtension PC Recorder - USB

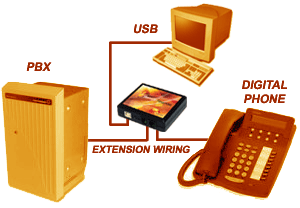

There are many valuable reasons why companies record telephone conversations and Xtension Recorder supplies you the highest quality recorder. Using Comvurgent’s ‘True Digital’ technology, Xtension Recorder stores conversations in the same high quality format as your digital telephone ensuring excellent sound quality. Xtension Recorder simply connects in line with digital PBX telephones and plugs into the USB connector on any PC.

The Set-up Options allows you to record all calls or manually select which to record. It also allows you to compress the files to save disc space and save calls locally or on a network server for centralized monitoring and playback. And the Xtension Recorder can be used to record a message instead of writing it down. The Xtension also helps you monitor those important callers and making sure that they are answered and transferred. Xtension Recorder allows you to dictate directly into your phone and e-mail the recording to an assistant.

Xtension Recorder Desktop
XtR Desktop can also be invisibly installed on Call Center agents desktops to record calls over a network to a central server for supervisor listening. Record on local PC or centrally on server over network. Also with Xtension you can use lockout (invisible), hide features (no user intervention), set auto delete for non important calls, auto prompt for comments/notes on each call, and select email export format of recordings. The Digital 01 and Universal US Adapter comes as standard supply and the GSM compression gives 170 hours recording per GByte. The time and date is stamp on every recording and the snapshot feature allows you to playback the current call while still recording.

Xtension Recorder BackOffice
Xtension Recorder BackOffice is the entry level centralized storage solution designed for small business's and call centers wishing to record calls centrally. Xtension Recorder BackOffice is designed for companies who don't require the extensive storage, archive and advanced search facilities of Xtension Recorder Professional. Customers investing in the BackOffice solution can upgrade to XtR Professional easily and quickly and cost effectively.

XtR BackOffice comprises 2 modules:

• XtR BackOffice Server - central storage of calls using BackOffice Digital 4/96 or multiple Desktop Digital 01 connectors.
• XtR BackOffice Supervisor - Supervisor monitor & playback of centrally recorded calls.

Note: It is possible to use XtR Desktop software located on each agent PC in 'invisible' mode to record calls to a central server, and to monitor and playback recordings using BackOffice Supervisor installed at the supervisors desktop.

Diagrams:

Xtension Recorder Professional
Xtension Recorder Professional is the premium call center solution designed for multi agent and multi supervisor operation. Centralized storage and archival management makes it easier to keep files organized and the password authorization helps keep it secure. The Xtr Professional incorporates application database (MDSE included) and supports multiple arcive such as: CD, DVD, DAT, ZIP, etc.

• XtR Professional comprises 3 modules:
  • XtR Pro Storage Server - Central storage and archive server
  • XtR Pro Manager - Supervisor positions for monitoring & playback
  • XtR Pro Agent Desktop (only required if using Digital 01 or Universal USB Adapter connectivity at desktop)

• XtR Professional uses any of the Xtension Recorder flexible USB connectivity:

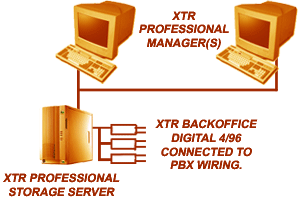

  • Connect centrally using BackOffice Digital 4/96

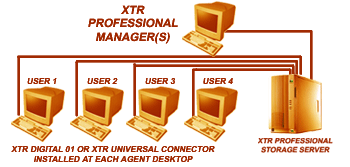

  • Connect to digital telephones at each desktop using Desktop Digital 01
  • Connect to analog telephones or digital telephones at desktop using Universal USB Adapter

• XtR Professional Manager Features:

  Managment of Storage Server and Archive Features by: Elapsed time Disk usage Search and playback on: call date & time logged in user call duration extension number type of call (incoming / outgoing) call notes (if entered by recorder user) caller ID (where available)

  Multiple managers can operate on one Storage Server Comprehensive reporting available: Daily reports Date range reports Password Protection Disconnection Alert of Connectivity device View live status of Agents Add notes to recordings

• XtR Professional Connectivity options:
