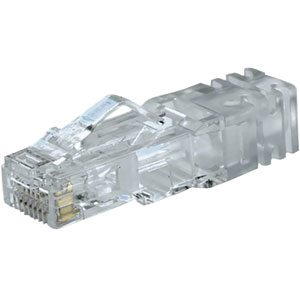

Panduit® Cat 6A UTP Modular Plug Pack of 100 |
| (Model # SP6X88-C) Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice. The Cat 6A UTP modular plug terminates 4-pair, 23-24 AWG, 100 ohm, solid unshielded twisted pair patch cable with maximum conductor insulation diameter of 0.048 inches (1.22mm) and maximum jacket diameter of 0.315 inches (8.00mm).
SP6X88-C Features:
- Product Type: Modular Plug
- Performance Level Category 6A
- Connector Type Modular Plug
- Body Material Polycarbonate
- Contact Material Gold Plated Phosphor Bronze
- Shield Type Unshielded (UTP)
- Overall Width (In.)0.46
- Overall Height (In.)0.52
- Overall Depth (In.)1.6
- Maximum Operating Temperature (°C)60
- Minimum Operating Temperature (°C)-10
- Minimum Operating Temperature (°F)14
- Compatible Wire Gauge (AWG) 23
- Flammability Rating: UL94V-0
- Standards Met: Exceeds ANSI/TIA Category 6A and ISO Class EA performance requirements when properly terminated to Panduit Category 6A UTP copper cable, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC-60603-7, Supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applications for up to 100 W, RoHS compliant
| |
|
