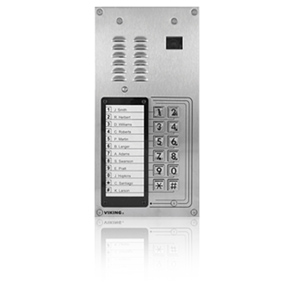

Viking Multi-Button Handsfree Entry Phone with Camera

View IP SIP System:

Entry Phone with Camera Features:

• Built-in high resolution analog NTSC color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature: -40°F to 140°F
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics
• Speaker/mic screen. Heavy duty metal keypad buttons and T-10 Security Torx drive mounting screws
• Weather Resistant Features: Marine grade 316 stainless steel faceplate and screws, Keypad internally sealed per IP67, Mylar speaker, Self-draining mic mount, Faceplate, mic and speaker gaskets
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control
• Blue “Call /Status” LED indicator
• SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 2, <6.5 watts)
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• 26 Bit Wiegand input for optional proximity card readers
• Programmable to speed dial up to 12 numbers
• Cycles to roll over phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
• Event logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Programmable volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Zinc plated steel rough-in box included
• Optional LRR-4 Long Range RFID Reciever
• Optional VE-5x10 Surface Mount Box available
• Optional VE-LIGHT kit to illuminate the front panel at night
• Self diagnostics (testing: com, mic, speaker, and switch)

Specifications:

• Power: PoE class 2 (<6.5 watts)
• Dimensions: Overall: 5” x 10” x 2.5” (127mm x 254mm x 63.5mm)
• Rough-in box: 4.5” x 9.12” x 2.5” (114mm x 232mm x 64mm)
• Shipping Weight: K-1205-IP - 4.3 lbs (1.95 kg), K-1205-IP-EWP - 4.5 lbs (2.04 kg)
• Operating Temperature: -40°F to 140°F (-40° C to 60° C)
• Humidity - Standard Products: 5% to 95% non-condensing
• Humidity - EWP Products: Up to 100%
• Audio Codecs: G711u, G711a, G722
• Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
• Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
