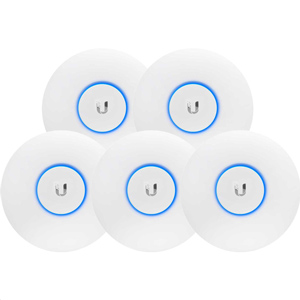

(Model # UAP-AC-HD-5-US) Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.
UAP-AC-HD-5-US Features:
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
- Dimensions 220 x 220 x 48.1 mm
- Networking Interface (2) 10/100/1000 Ethernet Ports
- Ports (2) Ethernet RJ45, (1) USB Type C
- Reset Button
- Antennas (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity
- Wi-Fi Standards 802.11a/b/g/n/ac/ac-wave2
- Power Method - PoE 802.3at
- Power Supply - PoE Injector 48VDC -0.5A Gigabit
- Maximum Power Consumption - 17W
- Max TX Power - 25 dBm
- BSSID - 4 Per Radio
- Power Save - Supported
- Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications CE, FCC, IC
- Mounting Wall/Ceiling (Kits Included)
- Operating Temperature -10 to 70° C (14 to 158° F)
- Operating Humidity - 5 to 95% Noncondensing
Advanced Traffic Management:
- VLAN 802.1Q
- Advanced QoS - Per-User Rate Limiting
- Guest Traffic Isolation - Supported
- WMM - Supported
- Concurrent Clients - 500+
Supported Data Rates (MBPS):
- 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n - 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
- 802.11ac - 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
- 802.11b - 1, 2, 5.5, 11 Mbps
- 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
| |
